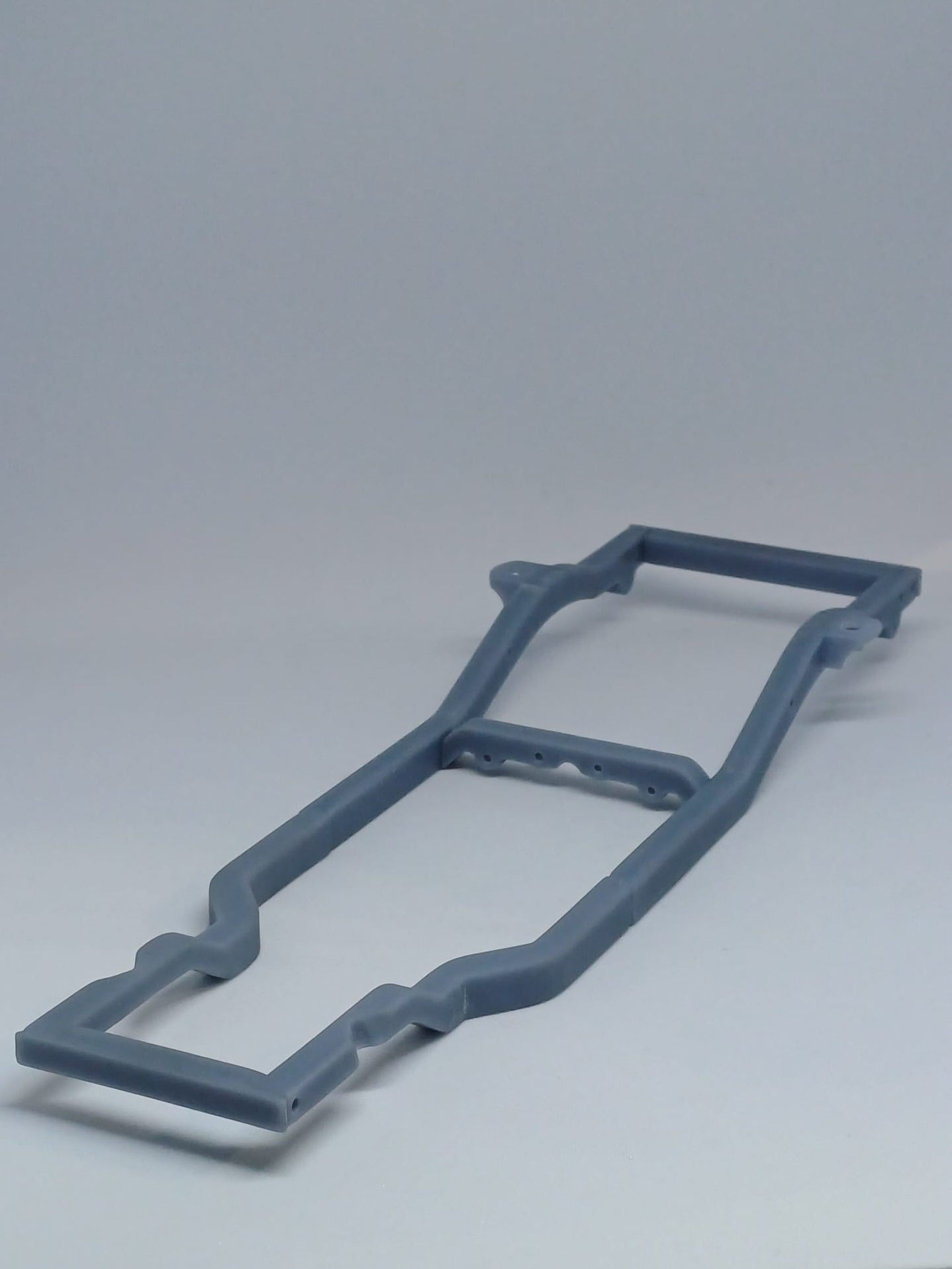

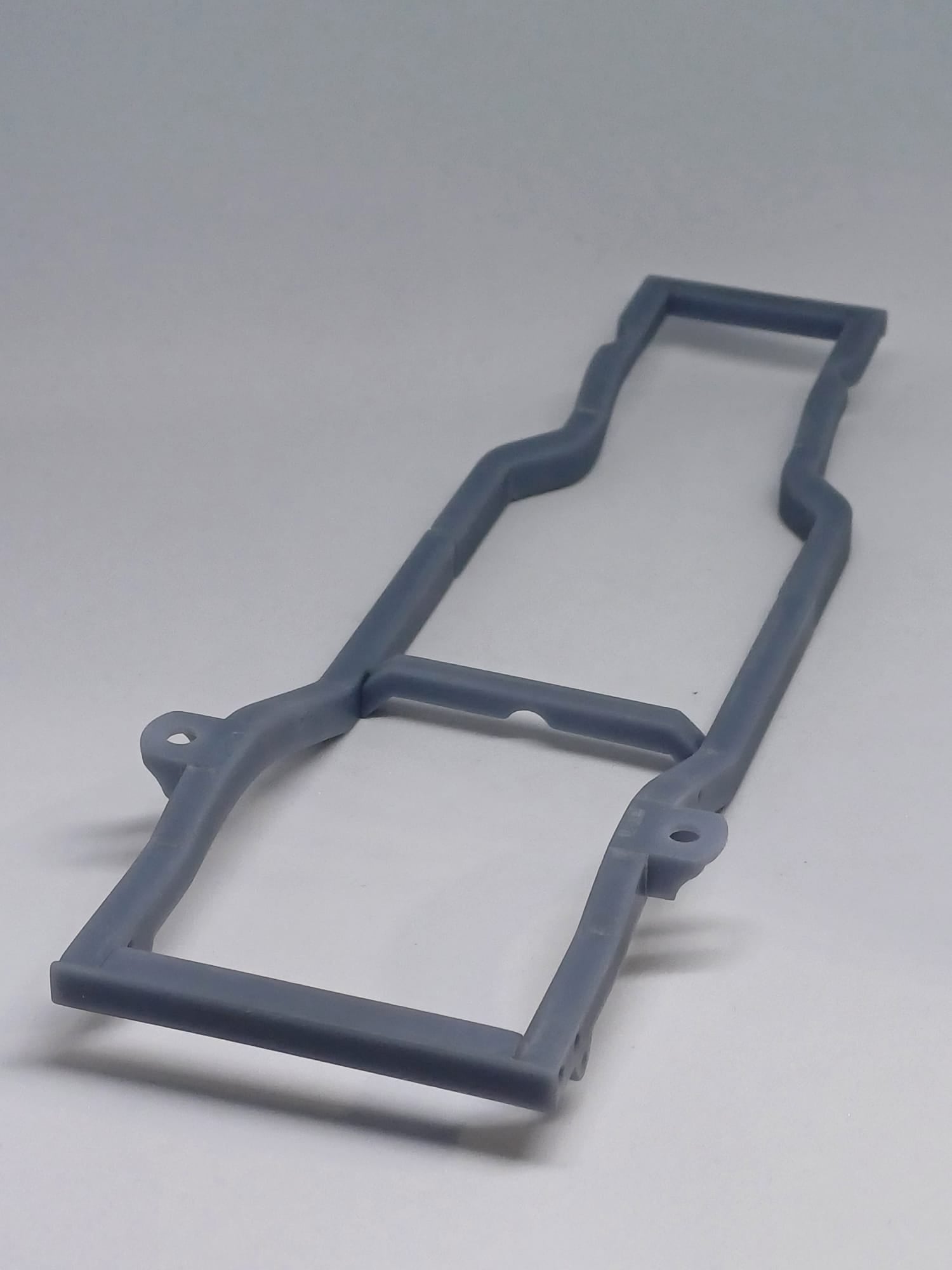

Minitruck chassis 1.20 scale

Build your own 1:20 mini truck with this detailed chassis, ideal for dancer, bagged, or slammed street builds. The chassis is engineered to be drivable and steerable, providing a solid foundation for functional RC setups as well as show-style builds. Easily switch between clean static configurations and full-motion show setups.

Skill Level: 5 – recommended for highly experienced builders comfortable with advanced custom modifications and precision assembly.

Key Features

• Designed for 1:20 scale single cab mini truck bodies

• Supports hydraulic setups, Z-rack systems, scissor-lift configurations, or static layouts

• Front and rear mounting points for realistic suspension geometry, linkages, and motion mechanisms

• Accommodates functional steering and driveline components

• Compatible with 1:20 scale RC mini truck axles

• Supports active hydraulics and motion control systems

Front Steering Options

1. Axle with Steering Knuckles – solid front axle with functional steering knuckles; ideal if most suspension action is at the rear

2. Independent A-Arm – independent front suspension using A-arms; driven for smoother steering and increased adjustability
   Both options mount to dedicated chassis points for easy customization during assembly.

Center Bridge Options

• Hydraulic: 4 outlets for Z-rack, rear-axle, or multi-hydraulic setups

• Bagged: designed specifically for air/bagged builds

Specifications & Details

• Chassis Length: 8.0 in (203 mm)

• Chassis Width: 2.1 in (53 mm)

• Wheelbase: 5.5 in (140 mm, adjustable ±0.20 in / ±5 mm)

• Material: ABS Pro V2 resin for durability

Assembly & Parts

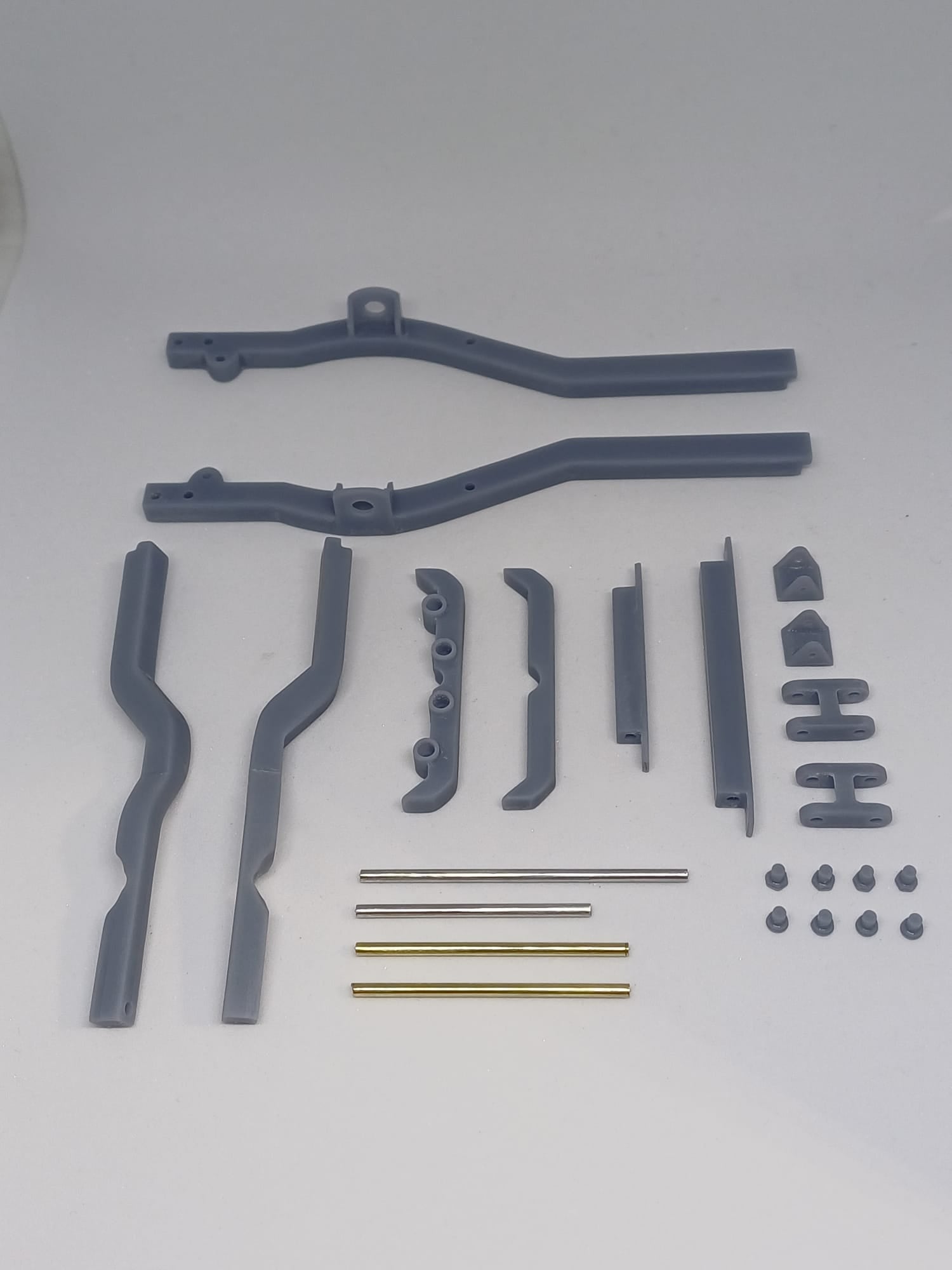

Includes 24 separate 3D-printed components, aluminium and brass connectors, and a detailed PDF assembly guide. This chassis is ready to bring your ultimate mini truck build to life.
